You finally close your double doors at the end of a long day. But something still feels off. Cold air is sneaking in through the center. A thin gap runs straight down between the two panels. and light from outside is visible at night when it should not be.
That gap is the real problem here. Fortunately. a t astragal is exactly what fixes it.
Most homeowners never hear about a t astragal until something goes wrong. Once you understand what this piece does. however. you quickly realize why every exterior double door setup needs one to function properly.

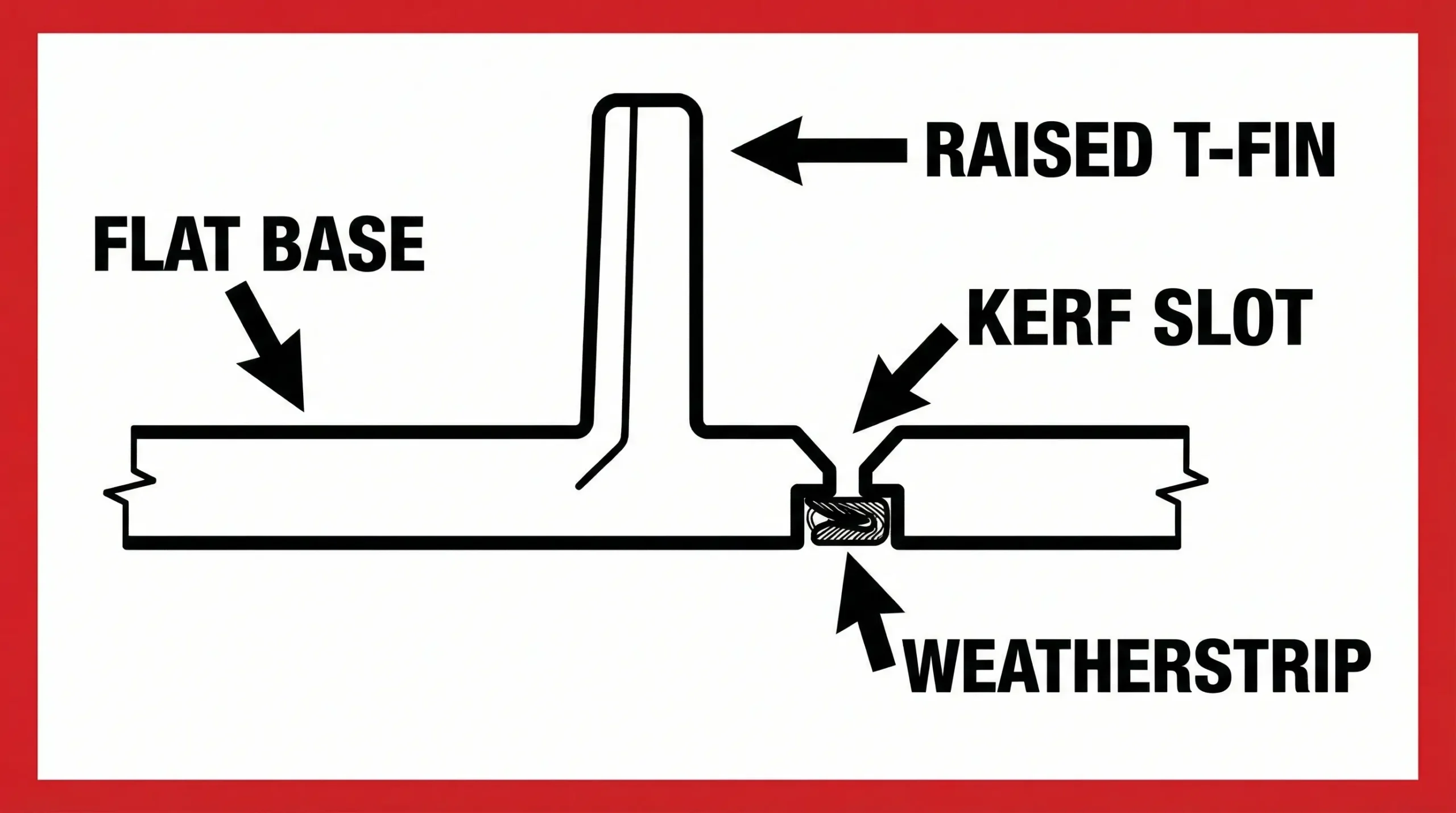

What a T Astragal Is and What It Does
A t astragal is a vertical molding strip that attaches to the edge of one door in a double door pair. Its name comes directly from its shape. When you look at it from the end. it looks exactly like the letter T. The flat bottom of that T mounts flush against the door face using screws. while the raised center fin reaches across the gap and presses into the other door when both panels close.
That fin is what creates the seal. Without it. your two doors close against nothing. Air flows through freely. Water finds its way in. Insects discover an open invitation. The t astragal eliminates all of that with one well-positioned strip running top to bottom along the inactive door.
Why the Center Gap in Double Doors Is a Real Problem
Double doors are a strong visual choice for entryways and patios. They open wide. they look elegant. and they add serious curb appeal. What they come with. though. is an unavoidable seam running right down the middle of the opening.
On a single door. that problem simply does not exist. On double doors. the gap between the two panels is a weak point that causes real issues over time.
Energy Loss You Pay For Every Month
Even a narrow unsealed gap lets conditioned air escape constantly. Your heating system works harder in winter. Your cooling runs longer in summer. As a result. your utility bills climb without any obvious reason. A properly fitted t astragal seals that path and keeps your climate control working the way it should.
Water and Moisture Damage Over Time
Rain does not stay politely on one side of a door. Wind-driven rain pushes through any gap it finds. Therefore. an unsealed double door seam becomes a slow entry point for moisture. Over time. that moisture reaches your flooring. your subfloor. and the bottom trim. Warping. rot. and mold follow quietly behind it.
Security Risk at the Center Join
Beyond weather. that center gap creates a physical vulnerability. Anyone attempting to force entry can use the center seam as a starting point to pry the doors apart. A t astragal installed correctly covers that seam and adds meaningful resistance right where the two doors meet.
Noise and Outdoor Elements
Sound travels easily through an open gap. Additionally. dust. pollen. and small insects find their way through without any difficulty. Homeowners who properly seal their double doors often notice a genuine difference in how clean and quiet their home stays.
How the T Shape Actually Creates a Seal
The mechanics are simple. which is part of why this design has worked so well for so long.
The flat base of the T mounts against the face of the inactive door. Screws run down the full height of the door. holding the astragal firmly in place. The raised fin then points outward toward the gap between the doors.
When the active door swings closed. it presses into that fin. Because the fin has a slight flex to it. it compresses just enough to form a continuous tight seal from top to bottom. Nothing gets through that contact line. not air. not water. not sound.
Most t astragals also include a narrow channel called a kerf along the edge of the fin. A soft weatherstrip insert snaps into that channel. This insert is the part that actually touches the other door. When the insert eventually wears out. you can replace just that strip without removing the entire astragal from the door.

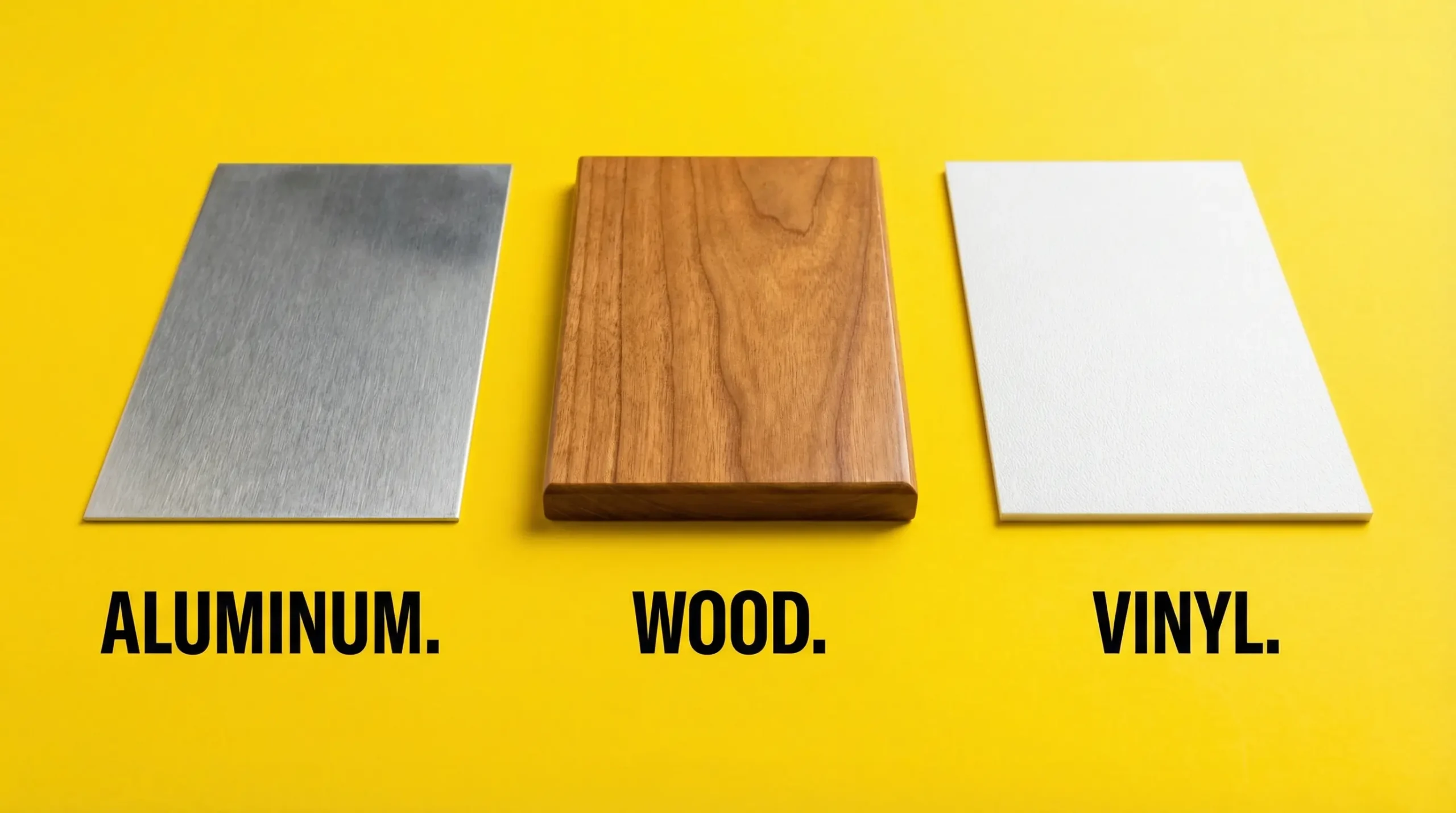

Types of T Astragals and How to Choose the Right One
Not all t astragals are built the same way. and choosing the wrong material for your situation leads to early failure. Here is a breakdown of your main options.
Aluminum T Astragal
Aluminum is the most popular choice for exterior double doors. and for good reason. It resists rust. holds its shape in temperature extremes. and handles humidity without degrading. Most aluminum t astragals come with a vinyl or silicone insert already seated in the kerf.
Finish choices are wide. Brushed silver. matte black. bronze. and white are all standard options. So matching your existing door hardware is usually straightforward without any special ordering.
Wood T Astragal
Wood t astragals work well on interior double doors and on covered entryways where direct rain exposure is minimal. Oak and pine are both commonly used. The main advantage of wood is how well it takes paint and stain. making it easy to match the door itself so the astragal nearly disappears visually.
The downside. however. is that wood requires more maintenance than aluminum. In wet or humid climates. an unfinished wood astragal absorbs moisture and eventually swells. cracks. or warps. For exterior use in rainy areas. aluminum is the safer long-term choice.
Vinyl and Composite Options
Vinyl sits at a lower price point and installs quickly. It works fine for interior applications but does not hold up well under years of outdoor exposure. Composite materials blend a wood-like appearance with better moisture resistance. making them a solid middle-ground option for homeowners who want the look without the upkeep.
T Astragal vs Flat Astragal. Which One Do You Actually Need
People mix these two up regularly. and the difference genuinely matters.
A flat astragal is a simple strip with no raised fin. It sits flush against the door edge and overlaps the gap slightly. This works for interior double doors where you need a basic visual seal and light draft coverage but nothing more demanding than that.
A t astragal. on the other hand. creates a compression seal because of that raised fin. When the active door closes against the fin. the pressure holds the seal tight against wind. rain. and temperature changes. That compression is what makes a t astragal suitable for exterior doors while a flat astragal simply is not.
If your doors open to the outside. use a t astragal. If your doors are interior. a flat astragal may handle the job. When you are unsure. the t astragal is the more capable option and the one that protects your home more reliably.
How to Measure Correctly Before You Buy
Getting the right size the first time saves a return trip and a second installation. Three measurements matter here.
Door height is your first measurement. Standard residential doors stand 80 inches tall. although 84 and 96 inch doors exist. Measure from the top of the door panel to the floor. not from the top of the frame.
Gap width between your two closed doors tells you how far the T fin needs to reach. Most t astragals cover the standard residential gap range. but checking this before ordering confirms you are getting the right product.
Door thickness is the third measurement. Residential doors come in 1 and 3/8 inch and 1 and 3/4 inch thicknesses. The t astragal wraps around the door edge. so using the wrong thickness means the fit will be off from the start.
Step by Step Installation Guide
Installing a t astragal is a realistic DIY project. Most homeowners finish the job in under an hour without professional help.
What you need: A drill. a screwdriver. a measuring tape. and a hacksaw if cutting is required.
Step 1. Identify the Inactive Door
The inactive door is the panel that stays closed during regular use. typically the one without the main deadbolt or door handle. The t astragal always mounts on this door. not the active one.
Step 2. Check Your Door Swing Direction
Inswing doors open inward toward you from outside. Outswing doors push outward away from you. The fin of the t astragal needs to face toward the active door. so its orientation depends on which direction your doors swing. Getting this right before cutting or drilling saves significant rework.
Step 3. Cut to Height If Needed
Measure your door height. mark the astragal at that length. and cut cleanly with a hacksaw. After cutting. run your finger along the cut edge and remove any sharp burrs so the finished end sits flat and clean.
Step 4. Position and Align
Hold the astragal along the edge of the inactive door with the flat base sitting flush against the door face. Align the very top of the astragal with the very top of the door. The fin should be pointing toward the gap between the two doors at this point.
Step 5. Mark and Pre-drill
Mark each screw hole location down the full height. Pre-drill pilot holes slightly smaller than your screw diameter. On wood doors this step prevents splitting. On aluminum doors it helps screws seat cleanly without stripping.
Step 6. Fasten From Top to Bottom
Start your screws at the top and work down. Do not fully tighten each screw until all of them are started. Then go back and snug each one evenly. This keeps the astragal from pulling in one direction before all fasteners are set.
Step 7. Install the Weatherstrip Insert
Press the soft insert into the kerf slot along the fin. It snaps in without adhesive. Close both doors and check the feel. The active door should press the fin with light. even resistance. If the doors drag or bind. loosen the screws slightly and shift the astragal a millimeter away from the gap before retightening.
Mistakes That Cost Homeowners Extra Time and Money
Mounting it on the wrong door
This is more common than you might expect. The t astragal belongs on the inactive door. Putting it on the active door creates problems with the latch. the lock alignment. and the swing path.
Skipping the door thickness check
A t astragal made for a 1 and 3/8 inch door will not seat correctly on a thicker door. Always verify this before placing your order.
Leaving out the weatherstrip insert
The astragal frame alone does not create the seal. The soft insert is what contacts the other door. Without it. the entire purpose of the t astragal is lost.
Over-tightening screws
Especially on wood doors. driving screws too hard causes the astragal to bow away from the door surface. That bowing creates new gaps that were not there before installation started.
Choosing material based on appearance only
A vinyl t astragal might look fine on an exterior door. but it will not perform like aluminum through years of weather exposure. Match your material to your actual conditions. not just your aesthetic preference.
When Your Current T Astragal Needs to Be Replaced
A worn t astragal rarely announces itself loudly. Instead. the signs build slowly over time.
You start feeling cold air near the center of your closed doors even on calm days. You hear more outside noise than you used to through those doors. Small insects start appearing inside despite everything being shut. The doors feel slightly loose when both panels are closed together. At night. standing inside a dark room. you can see a line of light coming through the center gap.
In many cases. replacing just the weatherstrip insert solves the problem completely. In other situations. however. the entire astragal body has warped or pulled away from the door surface. and a full replacement is the only real fix.
T Astragals in Commercial Buildings
Residential and commercial applications share the same basic concept. but commercial hardware is built to a noticeably heavier standard.
Commercial t astragals use thicker aluminum extrusions to handle constant traffic. heavy door weight. and strict code requirements. In many commercial settings. fire ratings apply to the entire door assembly. and the t astragal must carry a matching fire rating to remain code compliant.
Commercial astragals often come with integrated flush bolt hardware. These bolts lock the inactive door at the top and bottom simultaneously. adding multiple lock points and making forced entry considerably more difficult. If you are specifying hardware for a commercial project. always verify local fire and building codes before selecting any astragal.
FAQ’s
Q1. What does a t astragal do on double doors?
It seals the vertical gap between the two door panels. blocking air. water. noise. and insects from passing through the center seam when both doors are closed.
Q2. Which door does the t astragal go on?
Always the inactive door. That is the panel that typically stays closed while the other door opens and closes during regular use.
Q3. Is a t astragal different from a flat astragal?
Yes. A t astragal has a raised compression fin that creates a weatherproof seal for exterior doors. A flat astragal overlaps without compression and is used on interior doors where a full weather seal is not required.
Q4. Can a homeowner install a t astragal without professional help?
Absolutely. Most residential installations take under an hour with a drill and screwdriver. The steps are straightforward as long as measurements are taken carefully beforehand.
Q5. How long does a t astragal typically last?
A quality aluminum t astragal with a silicone insert can last 15 to 20 years or longer with basic care. The weatherstrip insert may need replacement sooner depending on climate and how frequently the doors are used.
Conclusion
A t astragal is a small piece of hardware that handles a large and important job. It stands between your home interior and everything outside. drafts. rain. noise. insects. and security risks are all addressed by one vertical strip installed correctly on the inactive door.
Most homeowners only start thinking about it after the seal fails. Understanding what a t astragal is. which material suits your doors. and how to install or replace it correctly puts you ahead of that problem before it starts costing you real money.
